The world’s first operational jet bomber.
Introduction
The Arado Ar 234 Blitz (‘Lightning’) was the first operational jet-powered bomber and a reconnaissance platform that arrived too late to influence the outcome of the Second World War, but early enough to demonstrate a new grammar of speed, altitude, and tactical surprise. Its design choices—twin Junkers Jumo 004 axial-flow turbojets, a sleek high-mounted wing, and a compact, pressurised cockpit—created a fast aircraft that Allied piston-engined fighters struggled to intercept. Yet the Blitz’s real impact was conceptual: it showed how turbojets would collapse the time-distance calculus of strategic and tactical air power.
Design Rationale and Airframe
Arado engineers conceived the Ar 234 initially as a fast photo-reconnaissance aircraft. The clean fuselage with a glazed nose housed a tightly packaged flight deck and cameras; the wing planform prioritised compressibility margins and structural efficiency for sustained high subsonic cruise. Early prototypes relied on a jettisonable take-off trolley (R-Gerät) and skid landing gear to save weight and drag, later replaced by a tricycle undercarriage in the Ar 234 B that transformed operational practicality. Weight discipline was ruthless: fuel volume and mission kit were traded against speed and range with a clarity that presaged post-war jet design.
Propulsion: Jumo 004 and Its Constraints
The twin Jumo 004 turbojets provided the essential step change. Axial compressors reduced frontal area and imparted a slim nacelle, while annular combustors stabilised flame across a range of throttle settings. But the metallurgy of the day—lacking high-temperature superalloys in sufficient quantity—imposed brutally short engine lives. Throttle handling had to be gentle to avoid compressor stalls or turbine failures. For the crews, the engine demanded a pilot’s finesse and a test pilot’s patience.
Operations: Reconnaissance First, Bombing Second
Operational history skews toward reconnaissance sorties over the Western Front and the Ardennes, where the Ar 234’s speed rendered interceptions rare. Bombing missions used externally mounted loads, including 500 kg weapons and occasionally the BT series. Without a bombsight optimised for high-speed jet profiles in the early versions, accuracy depended upon straight-and-level passes and pilot judgement. Later, the Peréz-style bombsight and autopilot coupling improved precision, but the aircraft remained a better eye than a fist.
Avionics, Cameras, and the Pilot’s Workflow
The Blitz integrated a compact instrument suite for high-speed flight and camera control. Reconnaissance fits included vertical and oblique installations, often using Rb 50/30 or Rb 75/30 cameras, chosen per tasking. Camera bay design ensured rapid swap and secure mounting, while pressurisation stabilised the cabin environment at altitude, improving pilot performance on long reconnaissance legs.
Countermeasures and Survivability
Survivability derived primarily from speed and altitude. Defensive guns were minimal or absent on many reconnaissance fits, reflecting the aircraft’s doctrine: avoid interception altogether. Where opposition was encountered, Allied fighters struggled to achieve positional advantage in time. Anti-aircraft fire remained a risk on ingress/egress and over targets, mitigated by profile planning and speed.
Legacy and Post-war Influence
The Ar 234’s legacy lies in the reconnaissance doctrine it enabled and the production lessons it taught: refined nacelle aerodynamics, landing gear configuration, and systems packaging informed early post-war jets. The Blitz proved that fast, high-altitude photo-intelligence could arrive almost unbidden over critical nodes, foreshadowing Cold War emphasis on speed, sensors, and survivability.
Selected Specifications (Ar 234 B)
- Powerplant: 2 × Junkers Jumo 004B axial turbojets
- Maximum speed: Approx. 740–780 km/h at altitude
- Service ceiling: Approx. 10,000–11,000 m
- Range: Mission-dependent; reconnaissance fits prioritised fuel
- Armament: Typically none on recon; bombs externally for strike
Variants, Production, and Logistics
The primary operational model was the Ar 234 B, which adopted a tricycle undercarriage and practical field systems. Proposals and limited trials included the Ar 234 C with four BMW 003 engines in twin paired nacelles to improve acceleration and single-engine safety. Production, however, was constrained by fuel shortages, engine manufacture bottlenecks, and Allied disruption of transport nodes. In practice, operational units prioritised reconnaissance fit-outs over strike owing to payload-range trade-offs and the strategic value of timely imagery.
Operational Case Studies
Case studies of Western Front sorties show the Ar 234 exploiting cloud breaks and high-speed runs to survey bridges, marshalling yards, and assembly areas. Mission debriefs emphasised fuel margins, engine husbandry, and the importance of pre-briefed escape headings. Where bombing was tasked, short, straight runs and disciplined throttle changes protected the 004s from surge while preserving weapon release accuracy.
Comparison: Ar 234 vs. Mosquito PR Variants
The RAF’s de Havilland Mosquito PR variants remained formidable through 1944–45, combining speed, range, and reliability. The Ar 234’s advantage was peak speed at altitude and jet climb performance once underway; the Mosquito offered longer endurance, mature engines, and a robust support network. The contrast illustrates the transitional nature of late-war jet operations: raw speed met industrial realities and field support constraints.
Case Focus: Reconnaissance over the Remagen Bridge
In March 1945, as Allied forces forged a bridgehead over the Rhine at Remagen, German jet reconnaissance became a high priority. Sources record Ar 234 sorties photographing the Ludendorff Bridge and approaches under intense anti‑aircraft fire. These missions illustrate the aircraft’s operational value: the Blitz could arrive quickly, capture imagery through brief exposure windows, and exit before interception. The limiting factors were not speed or altitude but engine life, fuel availability, weather, and the density of flak over critical nodes.
Development Timeline and Prototypes
The Ar 234 program progressed from early trolley‑launched prototypes to the more practical B‑series with tricycle gear. Prototype V‑airframes validated the skid concept and camera installations before the design pivoted to conventional undercarriage to enable dispersed operations from damaged or improvised airfields. This transition reflects a broader wartime learning curve: the attraction of pure performance gave way to the realities of sortie generation, turnaround time, and field maintenance.
- Ar 234 A (prototypes): Trolley take‑off plus skid landing to save drag and weight.
- Ar 234 B (production): Retractable tricycle gear; bomber and reconnaissance fits.
- Ar 234 C (limited): Four BMW 003 engines paired in nacelles to improve acceleration and one‑engine safety.
Engines: Jumo 004B versus BMW 003
The Jumo 004B’s axial compressor and annular combustor defined the B‑series. Operational guidance stressed gentle throttle handling to avoid hot‑section distress, with overhaul lives measured in tens of hours at best under ideal conditions. The envisioned four‑engine C‑series with BMW 003s promised better acceleration and redundancy, but production and logistics realities limited its fielding. In practice, engine husbandry and fuel quality were as decisive as aerodynamics.
Units, Sorties, and Reconnaissance Workflow
Ar 234 units prioritised photo‑reconnaissance on Western Front axes: bridges, marshalling yards, depots, and assembly areas. Crews briefed for fuel margins, escape headings, and weather windows; camera kits (e.g., Rb 50/30, Rb 75/30) were selected per altitude and task. Ground echelons focused on rapid camera swaps, engine checks, and fuel filtration—procedures that frequently dictated sortie rates more than aircrew availability did.
Data Snapshot (Ar 234 B, representative)
- Engines: 2 × Junkers Jumo 004B axial‑flow turbojets
- Max speed: c. 740–780 km/h (mission/altitude dependent)
- Ceiling: c. 10,000–11,000 m
- Range: reconnaissance‑biased profiles; fuel fraction and altitude critical
- Payload: external stores for strike; camera bays for recce
Production, Logistics, and Constraints
Output was capped by alloy supply, engine manufacture, and disruption of transport nodes. Fuel quality variability further eroded engine life. These constraints explain why the Blitz’s strategic impact was limited despite its performance: the ecosystem around the airframe—metallurgy, refining, spares, trained technicians—determined how many effective sorties could be flown.
Post‑war Influence and Evaluation
Post‑war assessments highlighted nacelle aerodynamics suited to axial compressors, landing‑gear integration for jet weight/CG envelopes, and compact nose packaging for cameras—patterns visible in early reconnaissance jets and light bombers. Handling notes emphasised engine‑management discipline and the trade space between climb, speed, and mission sensor use. The Blitz thus served as a bridge from wartime improvisation to post‑war jet standards.
Engineering Lessons and Influence
Lessons included intake/nacelle design for surge margins, undercarriage choices that privilege operational tempo as much as drag, and systems miniaturisation to preserve forward visibility and sensor fields. These migrated into Cold War types and doctrine, where speed and sensor reliability mattered as much as raw payload.
Dive Deeper in the Book
For a comprehensive late‑war context—engines, operations, logistics, and collapse of the Luftwaffe—see "This Was the Enemy: Aeroplanes Guns Bombs Downfall Volume Two" by Charles E. MacKay. Volume Two provides detailed analysis of German aviation development and the complete story of Luftwaffe technological advancement and collapse. Also available: "This Was the Enemy: The Luftwaffe 1945" for focused coverage of the final year.
Sources and Historiography
This article synthesises wartime records and post‑war analyses. Useful overviews and museum resources include the Smithsonian National Air and Space Museum’s Ar 234 exhibit materials and RAF technical histories. For unit‑level narratives and imagery, dedicated studies of Ar 234 bomber and reconnaissance units provide sortie‑pattern context and technical appendices. Engine data are corroborated across maintenance notes and post‑war test summaries.

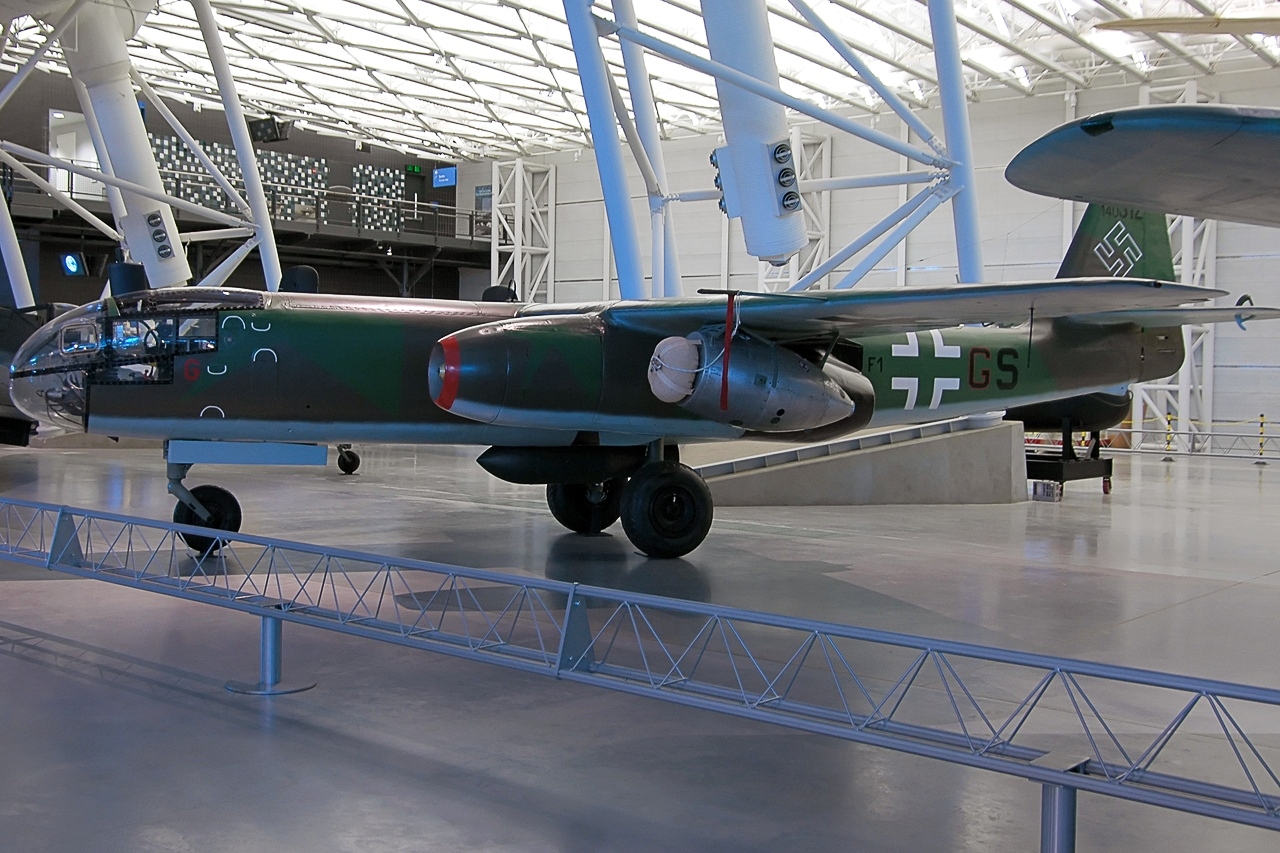

- Smithsonian National Air and Space Museum: Arado Ar 234 resources (Udvar‑Hazy Center).
- RAF and Allied intelligence summaries on German late‑war jets and engine maintenance.
- Robert Forsyth & Nick Beale, Arado Ar 234 Bomber and Reconnaissance Units (unit‑level operations and photos).
