English Electric Lightning: Britain's Supersonic Interceptor

Introduction: Britain's Supersonic Revolution

The English Electric Lightning represents one of the most audacious engineering achievements in British aviation history — a compact, vertically stacked twin‑engine interceptor designed to climb to 50,000 feet in under three minutes and intercept high‑speed intruders guided by ground radar. Conceived during the early Cold War when the Soviet Union's strategic bomber threat loomed large, the Lightning was Britain's answer to the challenge of defending national airspace against supersonic intruders. This comprehensive analysis traces the aircraft's development from experimental P.1A origins through operational F.6 service, examining the revolutionary configuration, advanced systems integration, and the operational doctrine that made it the backbone of Britain's air defence for over two decades.

The Lightning's significance extends far beyond its impressive performance figures. It represented a fundamental shift in fighter design philosophy, prioritizing reaction time and climb performance over range and payload — a doctrine perfectly suited to Britain's compact geography and Quick Reaction Alert (QRA) requirements. The aircraft's vertically stacked Rolls‑Royce Avon engines, ventral intake with translating shock cone, and compact airframe created a configuration that would influence interceptor design for decades to come.

Historical Context: The Cold War Interceptor Challenge

The Lightning's development must be understood within the strategic context of the early Cold War. By the mid‑1950s, the Soviet Union had developed long‑range strategic bombers capable of carrying nuclear weapons to targets in Western Europe and potentially the United Kingdom. The Tu‑16 Badger and Tu‑95 Bear represented a credible threat that demanded a new generation of interceptors capable of rapid response and high‑altitude performance.

Britain's existing interceptor force, primarily composed of subsonic aircraft like the Hawker Hunter and Gloster Javelin, was inadequate for this new threat. The Royal Air Force needed an aircraft that could scramble from alert, climb rapidly to intercept altitude, and engage high‑speed targets in all weather conditions. This requirement drove the development of what would become the Lightning — a specialized point‑defence interceptor designed around the QRA concept.

The British aircraft industry was well‑positioned to meet this challenge. English Electric had gained valuable experience with the Canberra bomber program, while Rolls‑Royce had developed the powerful Avon turbojet. The combination of these capabilities, along with advances in radar technology and missile systems, created the foundation for a revolutionary interceptor design.

Experimental Origins: P.1A and P.1B Breakthroughs

The Lightning's development began with the experimental P.1A, which first flew on August 4, 1954. This aircraft was designed to validate the revolutionary configuration that would become the Lightning's hallmark: vertically stacked engines, ventral intake, and highly swept wings. The P.1A was powered by two Rolls‑Royce Avon RA.2 engines, each producing 6,500 pounds of thrust, and featured a circular ventral intake with a translating center‑body for shock management.

The P.1A's most significant achievement was proving that the stacked‑engine configuration could work effectively. This arrangement offered several advantages: it reduced frontal area and drag, shortened intake duct length, and concentrated mass around the aircraft's centerline, improving pitch response and stability. The ventral intake provided space for radar equipment forward of the splitter while maintaining clean airflow to both engines.

The follow‑on P.1B, which first flew on April 4, 1957, introduced afterburning capability and more service‑like systems. This aircraft was powered by two Rolls‑Royce Avon RA.24 engines with reheat, each producing 12,690 pounds of thrust with afterburner. The P.1B demonstrated the Lightning's exceptional performance potential, achieving Mach 2.0 and establishing the basic configuration that would be refined for production aircraft.

Configuration Innovation: The Stacked‑Engine Solution

The Lightning's most distinctive feature — its vertically stacked engine configuration — represented a radical departure from conventional fighter design. This arrangement was chosen to minimize frontal area and drag while providing the necessary thrust for supersonic performance. The two Rolls‑Royce Avon engines were mounted one above the other in the rear fuselage, with the upper engine positioned above the lower engine.

This configuration offered several critical advantages. The reduced frontal area minimized drag at supersonic speeds, while the short intake ducts reduced pressure losses and improved engine efficiency. The concentrated mass distribution around the aircraft's centerline provided excellent pitch response and stability, essential for precise control during high‑speed intercepts. Additionally, the stacked arrangement simplified the intake system, allowing for a single ventral intake that served both engines.

The ventral intake design was equally innovative. The circular intake featured a translating center‑body that moved forward and aft to manage shock waves at different Mach numbers. This system ensured efficient airflow to both engines across the aircraft's speed range, from subsonic to supersonic. The intake also provided space for the Ferranti AI.23 radar forward of the splitter, a crucial feature for the aircraft's interception role.

Propulsion System: Rolls‑Royce Avon Development

The Lightning's performance was built around the Rolls‑Royce Avon turbojet, one of the most successful British jet engines of the post‑war period. The Avon was a single‑spool axial‑flow turbojet that evolved through multiple marks to provide the power necessary for supersonic interceptor performance. Early Lightning marks used the Avon RA.24, while later versions employed the more powerful RA.28 and RA.29 variants.

The Avon's afterburning capability was crucial to the Lightning's performance. With reheat engaged, each engine could produce up to 16,360 pounds of thrust, giving the aircraft exceptional acceleration and climb performance. The Lightning's rate of climb was legendary — it could reach 50,000 feet in under three minutes from brake release, a capability that made it ideally suited for QRA operations.

Engine reliability was a critical factor in the Lightning's operational success. The Avon proved to be a robust and maintainable powerplant, essential for an aircraft that needed to maintain high alert rates. The stacked configuration actually simplified some maintenance tasks, as both engines were easily accessible from the same area, though it did require careful attention to engine synchronization and fuel distribution.

Avionics Integration: AI.23 Radar and Weapons Systems

The Lightning's effectiveness as an interceptor depended heavily on its advanced avionics suite, centered around the Ferranti AI.23 AIRPASS (Airborne Interception Radar and Pilot Attack Sight System) radar. This system represented a significant advance in airborne interception technology, providing the pilot with the ability to detect, track, and engage targets in all weather conditions.

The AI.23 was a monopulse radar with a range of approximately 40 miles, capable of detecting bomber‑sized targets at high altitude. The system integrated ranging and sighting functions, providing the pilot with target range, closure rate, and aiming information. This integration was crucial for the Lightning's missile‑armed intercept role, allowing pilots to achieve firing solutions quickly and accurately.

The Lightning's weapons fit evolved through its service life. Early marks carried two 30mm Aden cannon and Firestreak infrared missiles, while later versions were equipped with Red Top missiles, which offered improved performance and greater off‑boresight capability. The F.6, the definitive RAF mark, typically carried two Red Top missiles and could be fitted with over‑wing fuel tanks for extended range when required.

Operational Doctrine: QRA and Interception Tactics

The Lightning was designed around Britain's Quick Reaction Alert (QRA) doctrine, which required aircraft to be able to scramble and intercept threats within minutes of detection. This doctrine was perfectly suited to Britain's compact geography and the nature of the Soviet bomber threat. Lightning squadrons maintained aircraft on alert status around the clock, with pilots and ground crews ready to launch at a moment's notice.

QRA operations followed a carefully choreographed sequence. When a threat was detected by ground radar, alert aircraft would be scrambled with minimal delay. The Lightning's exceptional climb performance allowed it to reach intercept altitude quickly, where it would be handed off to ground controllers for final guidance to the target. The AI.23 radar would then take over for the final approach and engagement.

The Lightning's endurance limitations were accepted as a necessary trade‑off for its performance advantages. With internal fuel only, the aircraft had approximately 45 minutes of flight time, though this could be extended with over‑wing tanks. This limitation was managed through careful mission planning and the use of forward operating bases for extended patrols.

"The Lightning was a rocket with a cockpit. From brake release to angels forty in minutes — nothing could match its climb and acceleration. You had to respect its fuel limitations, but within its envelope, it was unbeatable."

Marks Evolution: From F.1 to F.6

The Lightning evolved through six major marks during its service life, each incorporating improvements in performance, systems, and operational capability. The F.1, which entered service with No. 74 Squadron in 1960, established the basic Lightning configuration and operational procedures. This mark was powered by two Avon RA.24 engines and carried Firestreak missiles and Aden cannon.

The F.2 introduced improved systems reliability and maintainability, while the F.3 featured more powerful Avon RA.7R engines and was optimized for missile‑armed operations. The F.3A, a limited production version, introduced the larger ventral fuel tank that would become standard on the F.6.

The F.6 represented the definitive Lightning configuration and the pinnacle of the aircraft's development. This mark featured the extended ventral fuel tank, cambered leading edge for improved low‑speed handling, and Red Top missiles. The F.6 also introduced optional over‑wing fuel tanks, which could extend the aircraft's range for ferry flights or extended patrols. This mark remained in RAF service until 1988, demonstrating the Lightning's enduring effectiveness.

Pilot Experiences: Flying the Lightning

Lightning pilots universally praised the aircraft's handling characteristics and performance capabilities. The aircraft's responsiveness and stability made it a joy to fly, while its exceptional climb and acceleration performance inspired confidence in its interception capabilities. Pilots particularly appreciated the aircraft's honesty — it would not pretend to be something it wasn't, and within its design envelope, it was supremely capable.

The Lightning's cockpit was designed for the interception mission, with all essential controls and displays easily accessible. The AI.23 radar display was positioned prominently in the instrument panel, providing clear target information. The aircraft's three‑axis control system was well‑balanced, with precise response characteristics that made it easy to fly formation and conduct precise maneuvers.

Training for Lightning operations was comprehensive and demanding. Pilots underwent extensive conversion training, including simulator sessions and dual‑seat flights in the T.4 and T.5 trainers. The training syllabus emphasized the aircraft's unique characteristics, including its fuel management requirements and the importance of proper energy management during high‑performance flight.

Comparative Analysis: Lightning vs. Contemporaries

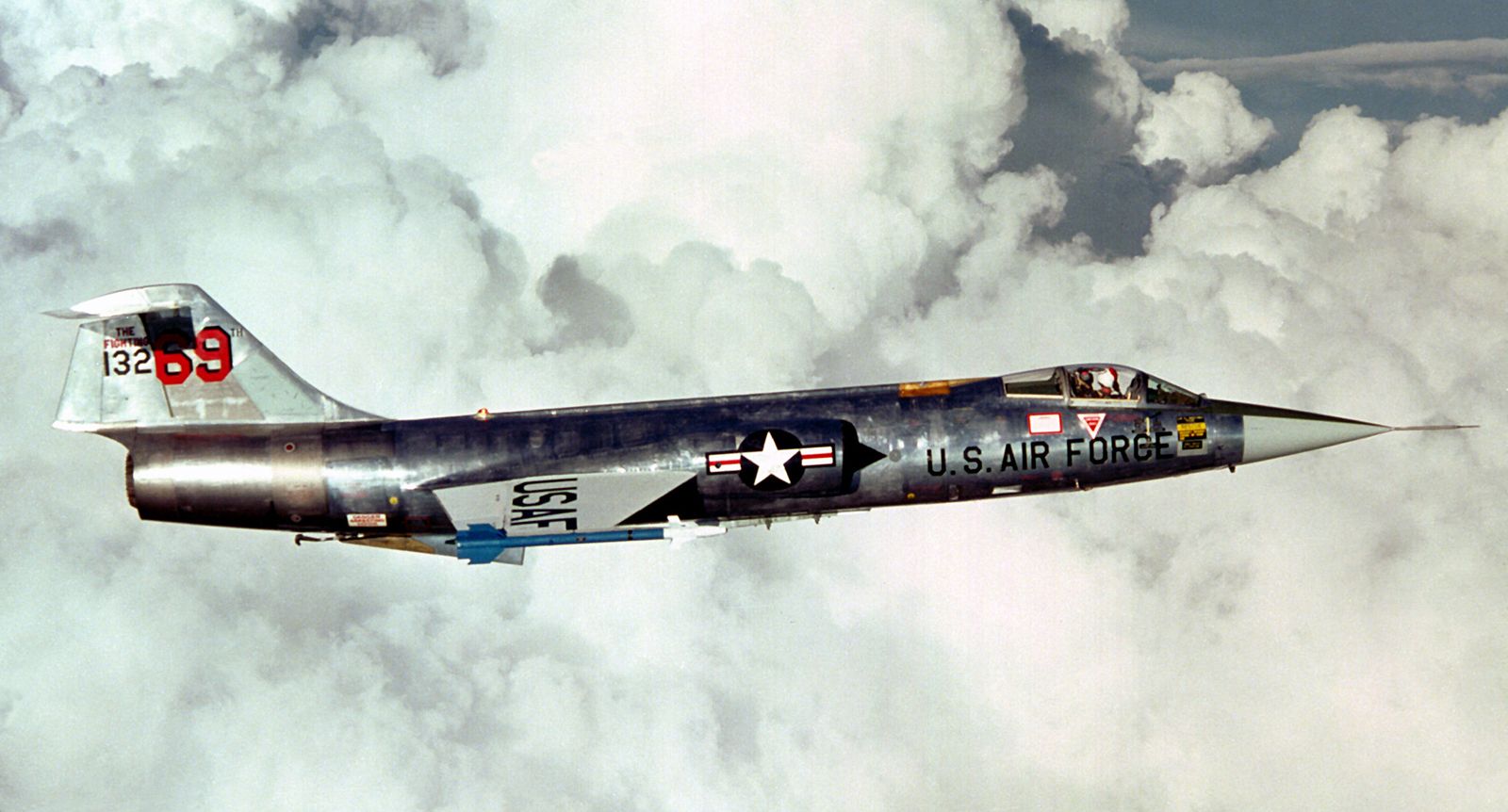

The Lightning's design philosophy and performance characteristics can be best understood through comparison with its contemporaries. The American F‑104 Starfighter, while sharing some performance characteristics, was designed for a different role — high‑altitude interception with emphasis on dash speed rather than sustained performance. The Lightning's superior climb rate and better low‑speed handling made it more suitable for the QRA mission.

The French Mirage III represented a different approach to the interceptor challenge. While the Mirage offered greater range and multi‑role capability, the Lightning's superior climb performance and better all‑weather capability made it more effective for the point‑defence role. The Lightning's AI.23 radar was also more advanced than the Mirage's early radar systems.

The Soviet MiG‑21, while sharing some design characteristics with the Lightning, was designed for a different operational concept. The MiG‑21's emphasis on high‑speed dash performance and its limited radar capability made it less suitable for the all‑weather interception role that the Lightning excelled at. The Lightning's superior avionics and weapons integration gave it a significant advantage in the interception mission.

Operational Service: RAF and Export Experience

The Lightning served as the backbone of Britain's air defence for over two decades, equipping 10 RAF squadrons at its peak. The aircraft's operational record was impressive, with high serviceability rates and excellent mission accomplishment rates. Lightning squadrons maintained continuous QRA coverage, providing Britain's primary air defence capability throughout the Cold War.

The Lightning's export success was limited but significant. Saudi Arabia operated the F.53 multi‑role variant, which featured additional hardpoints for ground attack weapons and reconnaissance pods. Kuwait also operated the F.53, using it primarily for air defence. These export variants demonstrated the Lightning's adaptability and the soundness of its basic design.

The Lightning's operational effectiveness was demonstrated during numerous intercepts of Soviet reconnaissance aircraft, including Tu‑95 Bear bombers and Tu‑16 Badger reconnaissance aircraft. These missions, often conducted over the North Sea and Norwegian Sea, demonstrated the Lightning's ability to operate effectively in challenging weather conditions and at extreme ranges from base.

Maintenance and Support Operations

The Lightning's maintenance requirements were well‑managed through careful planning and the development of specialized procedures. The aircraft's compact design made some maintenance tasks challenging, but the RAF developed efficient procedures that maintained high serviceability rates. The stacked engine configuration actually simplified some maintenance tasks, as both engines could be accessed from the same area.

Engine maintenance was a critical aspect of Lightning operations. The Avon engines required regular inspection and maintenance, particularly the hot sections and afterburner systems. The RAF developed specialized maintenance procedures and training programs that ensured engine reliability and performance.

Avionics maintenance, particularly for the AI.23 radar system, required specialized skills and equipment. Radar technicians underwent extensive training to maintain and calibrate the complex radar system. The development of test equipment and calibration procedures was crucial to maintaining the system's effectiveness.

Retirement and Historical Legacy

The Lightning's retirement from RAF service in 1988 marked the end of an era in British aviation. The aircraft had served for 28 years, a remarkable longevity that testified to the soundness of its design and the effectiveness of its operational concept. The Lightning's replacement by the Panavia Tornado F.3 represented a shift toward multi‑role aircraft, though the Tornado would never match the Lightning's climb performance.

The Lightning's legacy extends far beyond its operational service. The aircraft's configuration innovations, particularly the stacked‑engine arrangement and ventral intake design, influenced subsequent fighter designs. The Lightning's emphasis on climb performance and reaction time established principles that remain relevant to modern interceptor design.

The Lightning's operational doctrine, particularly the QRA concept, has been adopted by air forces worldwide. The principles of rapid response, high‑performance interception, and all‑weather capability that the Lightning pioneered remain central to modern air defence operations. The aircraft's success demonstrated the value of specialized design for specific operational requirements.

Selected Technical Specifications

• Powerplant: 2× Rolls‑Royce Avon RA.28/29 afterburning turbojets, 16,360 lb thrust each with reheat
• Performance: Maximum speed Mach 2.27, service ceiling 60,000 ft, rate of climb 50,000 ft/min
• Dimensions: Length 55 ft 3 in, wingspan 34 ft 10 in, height 19 ft 7 in
• Armament: 2× Red Top missiles, 2× 30mm Aden cannon (early marks), over‑wing fuel tanks optional
• Radar: Ferranti AI.23 AIRPASS monopulse radar, 40‑mile detection range
